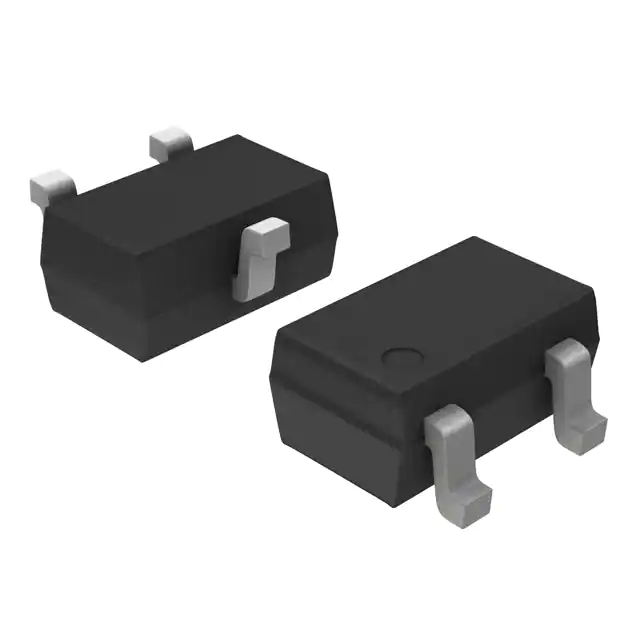

MMBF2201NT1G
MMBF2201NT1G
- Available: 1000
- Manufacturer: onsemi
- Part Number: MMBF2201NT1G
- Detailed Description: MOSFET N-CH 20V 300MA SC70-3
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - 单 FET，MOSFET
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.4680
10+
$0.4399
100+
$0.4165
1000+
$0.3931
10000+
$0.3697
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 不适用于新设计 |
| FET 类型 | N 通道 |
| 技术 | MOSFET（金属氧化物） |
| 漏源电压（Vdss） | 20 V |
| 25°C 时电流 - 连续漏极 (Id) | 300mA（Ta） |
| 驱动电压（最大 Rds On，最小 Rds On） | 4.5V，10V |
| 不同 Id、Vgs 时导通电阻（最大值） | 1 欧姆 @ 300mA，10V |
| 不同 Id 时 Vgs(th)（最大值） | 2.4V @ 250µA |
| Vgs（最大值） | ±20V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | 45 pF @ 5 V |
| FET 功能 | - |
| 功率耗散（最大值） | 150mW（Ta） |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | SC-70-3（SOT323） |
| 封装/外壳 | SC-70，SOT-323 |
| 基本产品编号 | MMBF2201 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
