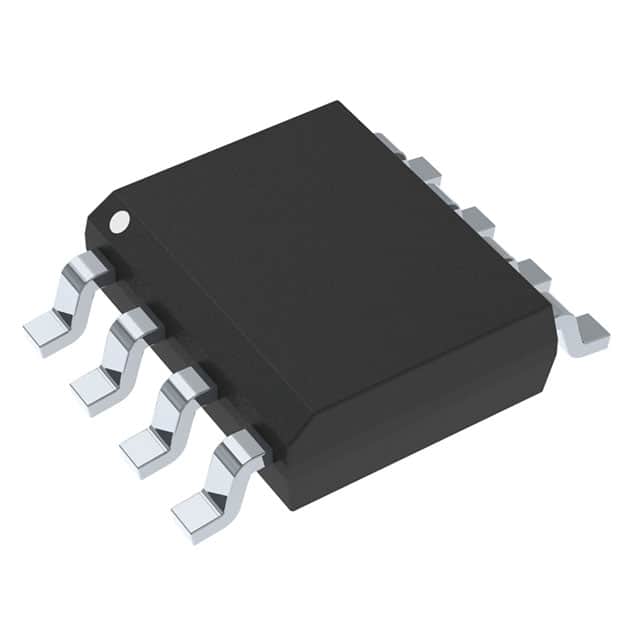

NCD57201DR2G
NCD57201DR2G
- In Stock: 2500
- Manufacturer: onsemi
- Part Number: NCD57201DR2G
- Detailed Description: HALF BRIDGE GATE DRIVER (ISOLATE
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.1360
10+
$2.0078
100+
$1.9010
1000+
$1.7942
10000+
$1.6874
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| 技术 | 容性耦合 |
| 通道数 | 1 |
| 电压 - 隔离 | 1000Vrms |
| 共模瞬变抗扰度（最小值） | 100kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 110ns，110ns |
| 脉宽失真（最大） | 25ns |
| 上升/下降时间（典型值） | 13ns，8ns |
| 电流 - 输出高、低 | 1.9A，2.3A |
| 电流 - 峰值输出 | 1.9A，2.3A |
| 电压 - 正向 (Vf)（典型值） | - |
| 电压 - 输出供电 | 0V ~ 20V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商器件封装 | 8-SOIC |
| 认证机构 | VDE |
| 基本产品编号 | NCD57201 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
