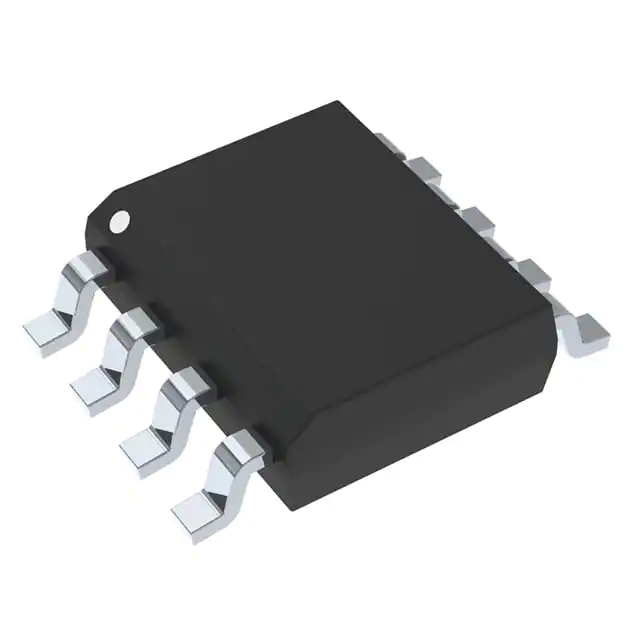

NCP1393BDR2G
NCP1393BDR2G
- Available: 1000
- Manufacturer: onsemi
- Part Number: NCP1393BDR2G
- Detailed Description: IC HALF BRIDGE DVR HV OSC 8SOIC
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.4160
10+
$1.3310
100+
$1.2602
1000+
$1.1894
10000+
$1.1186
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 2500 |
| 产品状态 | 不适用于新设计 |
| 输出配置 | 半桥（2） |
| 应用 | AC 负载，灯泡，通用 |
| 接口 | 开/关 |
| 负载类型 | 电感，电容性，电阻 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | 5 毫欧 LS，12 毫欧 HS |
| 电流 - 输出/通道 | - |
| 电流 - 峰值输出 | 1A |
| 电压 - 供电 | 16V |
| 电压 - 负载 | 16V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | 自举电路，内部振荡器 |
| 故障保护 | 击穿 |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商器件封装 | 8-SOIC |
| 基本产品编号 | NCP1393 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
