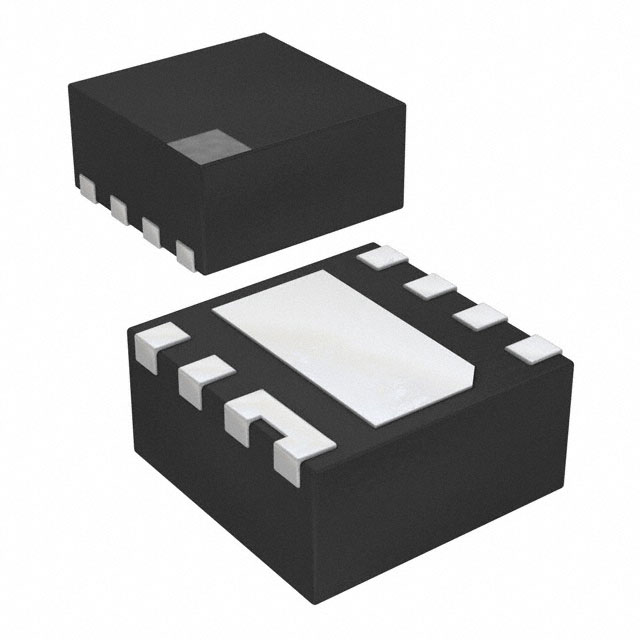

NCP45521IMNTWG-L
NCP45521IMNTWG-L
- Available: 1000
- Manufacturer: onsemi
- Part Number: NCP45521IMNTWG-L
- Detailed Description: IC PWR SWITCH N-CHAN 1:1 8DFN
- Category: 集成电路（IC） | 电源管理（PMIC） - 配电开关，负载驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.9440
10+
$1.8274
100+
$1.7302
1000+
$1.6330
10000+
$1.5358
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | ecoSWITCH™ |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 开关类型 | 通用 |
| 输出数 | 1 |
| 比率 - 输入:输出 | 1：1 |
| 输出配置 | 高端 |
| 输出类型 | N 通道 |
| 接口 | 开/关 |
| 电压 - 负载 | 0.5V ~ 13.5V |
| 电压 - 供电 (Vcc/Vdd) | 3V ~ 5.5V |
| 电流 - 输出（最大值） | 10.5A |
| 导通电阻（典型值） | 12.8 毫欧 |
| 输入类型 | 非反相 |
| 特性 | 压摆率受控型 |
| 故障保护 | 超温，UVLO |
| 工作温度 | -40°C ~ 85°C（TA） |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | 8-DFN（2x2） |
| 封装/外壳 | 8-VFDFN 裸露焊盘 |
| 基本产品编号 | NCP45521 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
