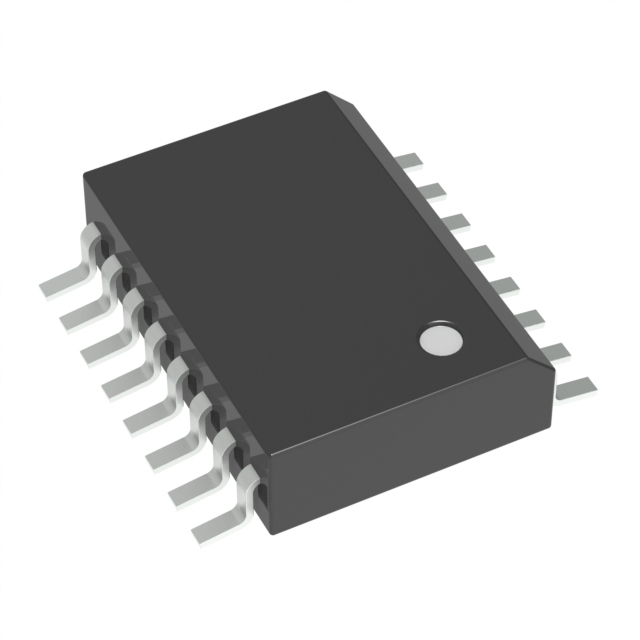

NCP51561DBDWR2G
NCP51561DBDWR2G
- In Stock: 1000
- Manufacturer: onsemi
- Part Number: NCP51561DBDWR2G
- Detailed Description: HIGH PERFORMANCE ISOLATED DUAL C
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$4.8840
10+
$4.5910
100+
$4.3468
1000+
$4.1026
10000+
$3.8584
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 技术 | 容性耦合 |
| 通道数 | 2 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 200V/ns |
| 传播延迟 tpLH / tpHL（最大值） | 58ns，58ns |
| 脉宽失真（最大） | 5ns |
| 上升/下降时间（典型值） | 11ns，10ns |
| 电流 - 输出高、低 | 9A，4.5A |
| 电流 - 峰值输出 | 4.5A，9A |
| 电压 - 正向 (Vf)（典型值） | - |
| 电压 - 输出供电 | 18.5V ~ 30V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 16-SOIC |
| 认证机构 | CQC，UL，VDE |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
