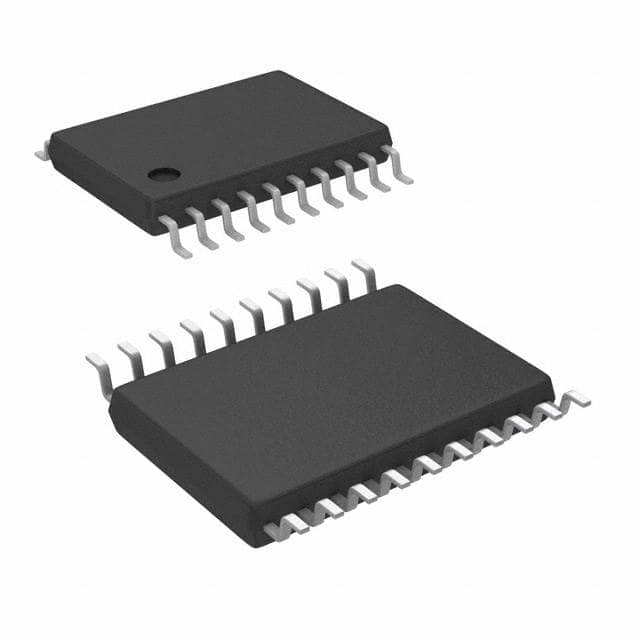

NCV7535DBR2G
NCV7535DBR2G
- In Stock: 0
- Manufacturer: onsemi
- Part Number: NCV7535DBR2G
- Detailed Description: 电机驱动器 NMOS SPI 20-TSSOP
- Category: 集成电路（IC） | 电源管理（PMIC） - 电机驱动器，控制器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.5520
10+
$3.3389
100+
$3.1613
1000+
$2.9837
10000+
$2.8061
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| 电机类型 - 步进 | - |
| 电机类型 - AC，DC | 有刷直流 |
| 功能 | 控制器 - 换向，方向管理 |
| 输出配置 | 前置驱动器 - 半桥（2） |
| 接口 | SPI |
| 技术 | NMOS |
| 步进分辨率 | - |
| 应用 | 汽车级 |
| 电流 - 输出 | - |
| 电压 - 供电 | 4.75V ~ 5.25V |
| 电压 - 负载 | 5V ~ 28V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 20-TSSOP（0.173"，4.40mm 宽） |
| 供应商器件封装 | 20-TSSOP |
| 基本产品编号 | NCV7535 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
