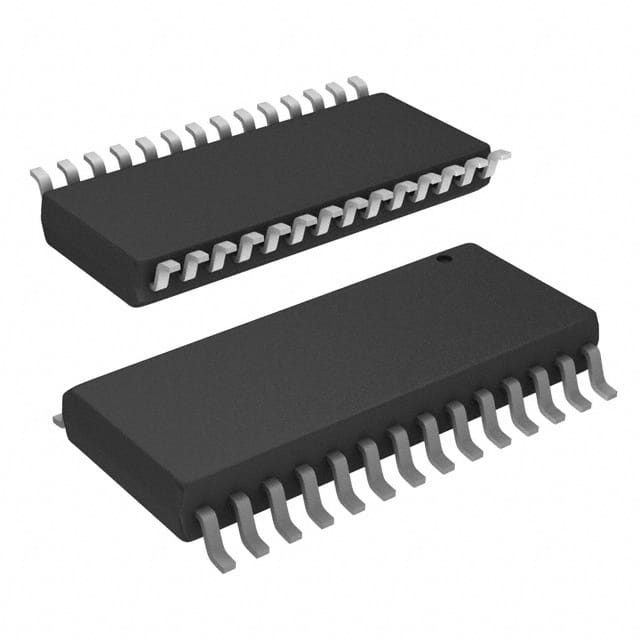

NCV7608DWR2G
NCV7608DWR2G
- In Stock: 0
- Manufacturer: onsemi
- Part Number: NCV7608DWR2G
- Detailed Description: 半桥（4） 驱动器 DC 电机，灯泡，继电器 功率 MOSFET 28-SOIC
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 1000 |
| 产品状态 | 停产 |
| 输出配置 | 半桥（4） |
| 应用 | DC 电机，灯泡，继电器 |
| 接口 | SPI |
| 负载类型 | 电感，电容性，电阻 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | 1.2 欧姆 |
| 电流 - 输出/通道 | - |
| 电流 - 峰值输出 | 250mA |
| 电压 - 供电 | 3.15V ~ 5.25V |
| 电压 - 负载 | 5.5V ~ 28V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | 压摆率受控型，状态标志 |
| 故障保护 | 限流，开路负载检测，超温，过压，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 28-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 28-SOIC |
| 基本产品编号 | NCV7608 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
