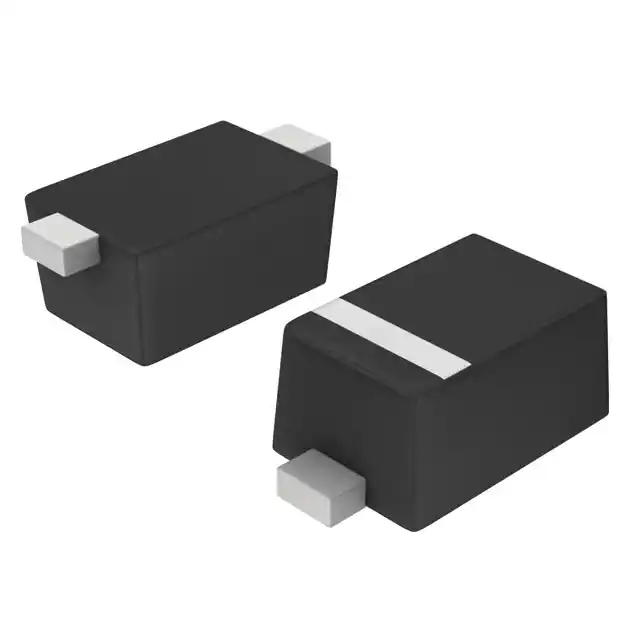

NSD914XV2T1G
NSD914XV2T1G
- Available: 10000
- Manufacturer: onsemi
- Part Number: NSD914XV2T1G
- Detailed Description: DIODE GEN PURP 100V 200MA SOD523
- Category: 分立半导体产品 | 二极管 - 整流器 - 单二极管
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.4680
10+
$0.4399
100+
$0.4165
1000+
$0.3931
10000+
$0.3697
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 二极管类型 | 标准 |
| 电压 - DC 反向 (Vr)（最大值） | 100 V |
| 电流 - 平均整流 (Io) | 200mA（DC） |
| 不同 If 时电压 - 正向 (Vf) | 1 V @ 10 mA |
| 速度 | 小信号 =< 200mA（Io），任意速度 |
| 反向恢复时间 (trr) | 4 ns |
| 不同 Vr 时电流 - 反向泄漏 | 5 µA @ 75 V |
| 不同 Vr、F 时电容 | 4pF @ 0V，1MHz |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | SC-79，SOD-523 |
| 供应商器件封装 | SOD-523 |
| 工作温度 - 结 | -55°C ~ 150°C |
| 基本产品编号 | NSD914 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
