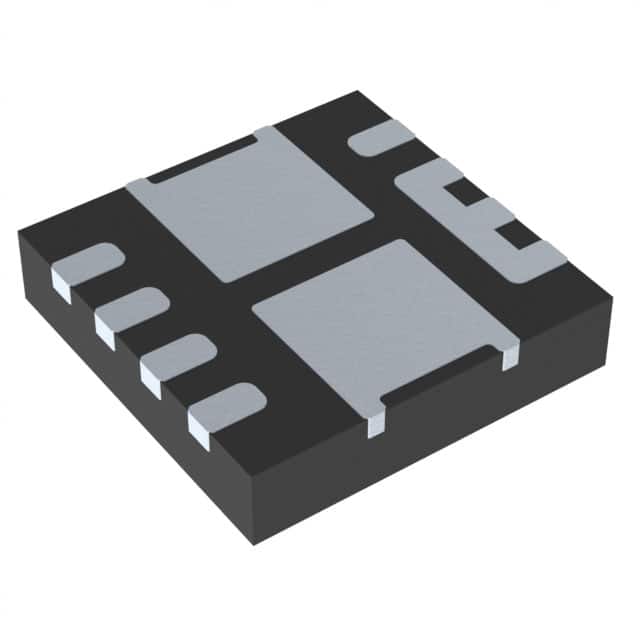

NTTFD2D8N03P1E
NTTFD2D8N03P1E
- In Stock: 0
- Manufacturer: onsemi
- Part Number: NTTFD2D8N03P1E
- Detailed Description: MOSFET - 阵列 30V 16.1A（Ta），80A（Tc） 1.04W（Ta），26W（Ta） 表面贴装型 12-WQFN（3.3x3.3）
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - FET、MOSFET 阵列
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$2.8320
10+
$2.6621
100+
$2.5205
1000+
$2.3789
10000+
$2.2373
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | PowerTrench® |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 技术 | MOSFET（金属氧化物） |
| 配置 | 2 N-通道（双） |
| FET 功能 | - |
| 漏源电压（Vdss） | 30V |
| 25°C 时电流 - 连续漏极 (Id) | 16.1A（Ta），80A（Tc） |
| 不同 Id、Vgs 时导通电阻（最大值） | 2.5 毫欧 @ 18A，10V |
| 不同 Id 时 Vgs(th)（最大值） | 3V @ 400µA |
| 不同 Vgs 时栅极电荷 (Qg)（最大值） | 20.8nC @ 10V，20.5nC @ 10V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | 1500pF @ 15V，1521pF @ 15V |
| 功率 - 最大值 | 1.04W（Ta），26W（Ta） |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 12-PowerWQFN |
| 供应商器件封装 | 12-WQFN（3.3x3.3） |
| 基本产品编号 | NTTFD2 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
