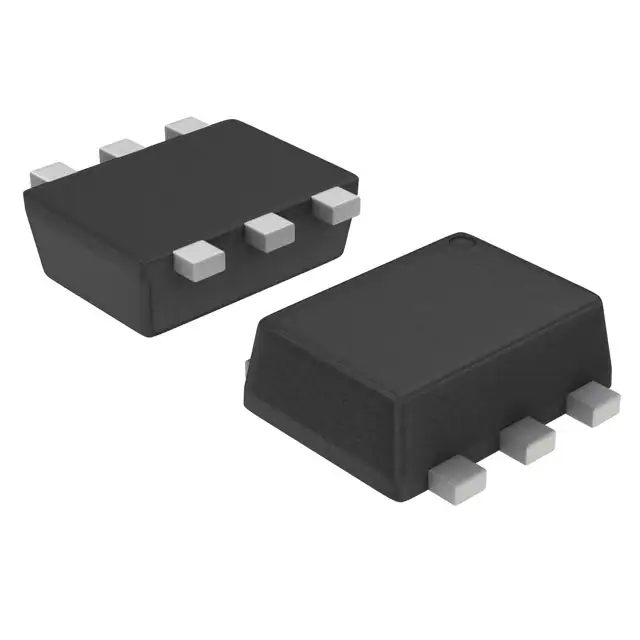

NUF2042XV6T1G
NUF2042XV6T1G
- Available: 4000
- Manufacturer: onsemi
- Part Number: NUF2042XV6T1G
- Detailed Description: FILTER RC(PI) 22 OHM/42PF SMD
- Category: 滤波器 | EMI/RFI 滤波器（LC，RC 网络）
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5640
10+
$0.5302
100+
$0.5020
1000+
$0.4738
10000+
$0.4456
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 4000 |
| 产品状态 | 在售 |
| 类型 | 低通 |
| 滤波器阶数 | 2nd |
| 技术 | RC（Pi） |
| 通道数 | 2 |
| 中心/截止频率 | - |
| 衰减值 | - |
| 电阻 - 通道 (欧姆) | 22 |
| 数值 | R = 22 欧姆，C = 42pF（总计） |
| ESD 保护 | 是 |
| 工作温度 | -55°C ~ 125°C |
| 应用 | USB |
| 电压 - 额定 | - |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | SOT-563，SOT-666 |
| 大小 / 尺寸 | 0.063" 长 x 0.047" 宽（1.60mm x 1.20mm） |
| 高度 | 0.024"（0.60mm） |
| 基本产品编号 | NUF2042 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8548.00.0000 |
