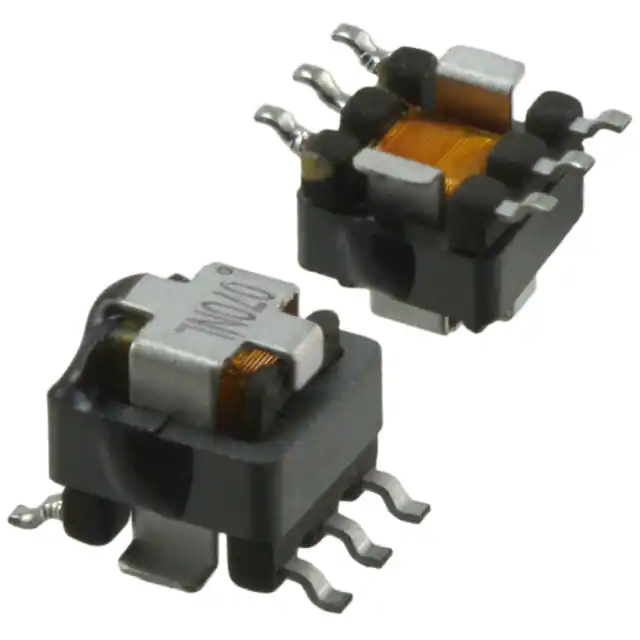

PA1005.100NLT
PA1005.100NLT
- Available: 10000
- Manufacturer: Pulse Electronics Power
- Part Number: PA1005.100NLT
- Detailed Description: CURR SENSE XFMR 1:100 20A SMD
- Category: 变压器 | 电流互感器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.9640
10+
$2.7862
100+
$2.6380
1000+
$2.4898
10000+
$2.3416
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Pulse Electronics Power |
|---|---|
| 系列 | PA1005.XXXNL |
| 包装 | - |
| 标准包装 | 900 |
| 产品状态 | 在售 |
| 频率范围 | 50kHz ~ 1MHz |
| 类型 | 侵入型 |
| 额定电流（安培） | 20 A |
| 电感 | 2 mH |
| ET（伏特-时间） | - |
| 匝数比 - 初级:次级 | 1：100 |
| 电流比 | - |
| DC 电阻 (DCR) | 初级侧 0.75 毫欧，次级侧 5.5 欧姆 |
| 等级 | - |
| 安装类型 | 表面贴装型 |
| 大小 / 尺寸 | 0.284" 长 x 0.330" 宽（7.21mm x 8.38mm） |
| 高度 - 安装（最大值） | 0.217"（5.50mm） |
| 端接样式 | 鸥翼 |
| 重量 | 0.014 盎司（0.4 g） |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
