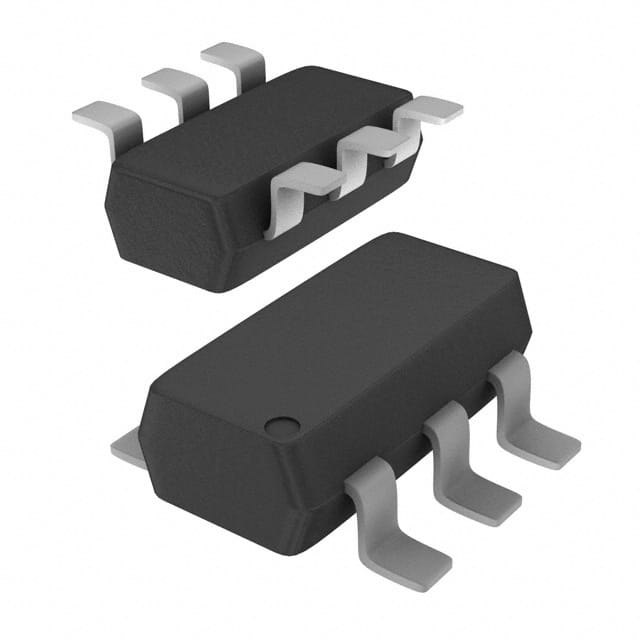

PBLS6021D,115
PBLS6021D,115
- Available: 3000
- Manufacturer: Nexperia USA Inc.
- Part Number: PBLS6021D,115
- Detailed Description: 晶体管 - 双极 (BJT) - 阵列 - 预偏置 1 NPN 预偏压式，1 PNP 50V，60V 100mA，1.5A 150MHz 760mW 表面贴装型 6-TSOP
- Category: 分立半导体产品 | 晶体管 - 双极（BJT） - 双极晶体管阵列，预偏置
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.1867
10+
$0.1755
100+
$0.1662
1000+
$0.1568
10000+
$0.1475
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Nexperia USA Inc. |
|---|---|
| 系列 | =- |
| 包装 | =卷带（TR） | 剪切带（CT） |
| 标准包装 | =3000 |
| 产品状态 | =在售 |
| 晶体管类型 | =1 NPN 预偏压式，1 PNP |
| 电流 - 集电极 (Ic)（最大值） | =100mA，1.5A |
| 电压 - 集射极击穿（最大值） | =50V，60V |
| 电阻器 - 基极 (R1) | =2.2 千欧 |
| 电阻器 - 发射极 (R2) | =2.2 千欧 |
| 不同 Ic、Vce 时 DC 电流增益 (hFE)（最小值） | =30 @ 20mA，5V / 140 @ 1A，2V |
| 不同 Ib、Ic 时 Vce 饱和压降（最大值） | =150mV @ 500µA，10mA / 260mV @ 100mA，1.5A |
| 电流 - 集电极截止（最大值） | =1µA，100nA |
| 频率 - 跃迁 | =150MHz |
| 功率 - 最大值 | =760mW |
| 安装类型 | =表面贴装型 |
| 封装/外壳 | =SC-74，SOT-457 |
| 供应商器件封装 | =6-TSOP |
| 基本产品编号 | =PBLS6021 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
