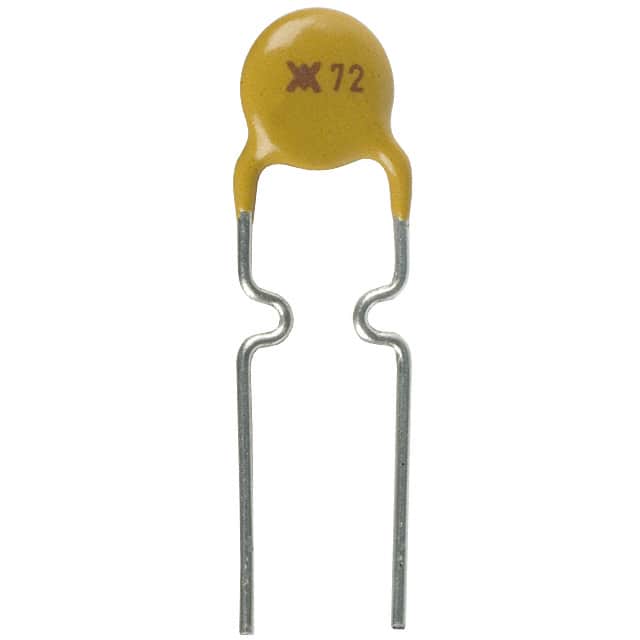

RXEF030-2
RXEF030-2
- In Stock: 0
- Manufacturer: Littelfuse Inc.
- Part Number: RXEF030-2
- Detailed Description: 聚合物 PTC 自恢复保险丝 72V 300 mA Ih 通孔 径向，圆片式
- Category: 电路保护 | PTC 可复位保险丝
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5760
10+
$0.5414
100+
$0.5126
1000+
$0.4838
10000+
$0.4550
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Littelfuse Inc. |
|---|---|
| 系列 | PolySwitch®, RXEF |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 类型 | 聚合物 |
| 电压 - 最大值 | 72V |
| 电流 - 最大值 | 40 A |
| 电流 - 保持 (Ih)（最大值） | 300 mA |
| 电流 - 跳断 (It) | 600 mA |
| 跳断时间 | 3 s |
| 电阻 - 初始 (Ri)（最小值） | 880 mOhms |
| 电阻 - 跳断后 (R1)（最大值） | 2.1 Ohms |
| 工作温度 | - |
| 等级 | - |
| 安装类型 | 通孔 |
| 封装/外壳 | 径向，圆片式 |
| 大小 / 尺寸 | 0.291" 直径 x 0.118" 厚（7.40mm x 3.00mm） |
| 高度 - 安装（最大值） | 0.500"（12.70mm） |
| 厚度（最大值） | - |
| 引线间距 | 0.200"（5.08mm） |
| 认证机构 | CQC，CSA，TUV，UL |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
