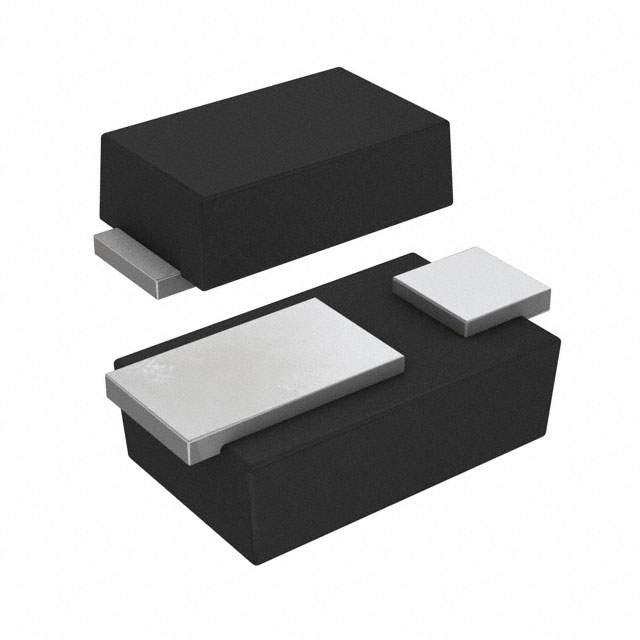

S1JHE
S1JHE
- Available: 10000
- Manufacturer: onsemi
- Part Number: S1JHE
- Detailed Description: DIODE GEN PURP 600V 1A SOD323HE
- Category: 分立半导体产品 | 二极管 - 整流器 - 单二极管
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.4680
10+
$0.4399
100+
$0.4165
1000+
$0.3931
10000+
$0.3697
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | Automotive, AEC-Q101 |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 二极管类型 | 标准 |
| 电压 - DC 反向 (Vr)（最大值） | 600 V |
| 电流 - 平均整流 (Io) | 1A |
| 不同 If 时电压 - 正向 (Vf) | 1.1 V @ 1 A |
| 速度 | 标准恢复 >500ns，> 200mA（Io） |
| 反向恢复时间 (trr) | 782 ns |
| 不同 Vr 时电流 - 反向泄漏 | 1 µA @ 600 V |
| 不同 Vr、F 时电容 | 3pF @ 4V，1MHz |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 2-SMD，扁平引线 |
| 供应商器件封装 | SOD-323HE |
| 工作温度 - 结 | -55°C ~ 175°C |
| 基本产品编号 | S1J |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
