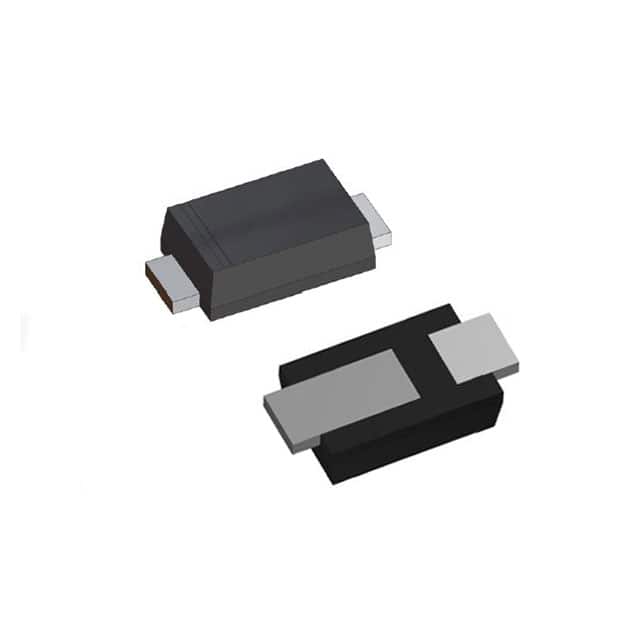

S1MFP
S1MFP
- In Stock: 3000
- Manufacturer: onsemi
- Part Number: S1MFP
- Detailed Description: 二极管 1000 V 1.2A 表面贴装型 SOD-123HE
- Category: 分立半导体产品 | 二极管 - 整流器 - 单二极管
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5160
10+
$0.4850
100+
$0.4592
1000+
$0.4334
10000+
$0.4076
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | Automotive, AEC-Q101 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 二极管类型 | 标准 |
| 电压 - DC 反向 (Vr)（最大值） | 1000 V |
| 电流 - 平均整流 (Io) | 1.2A |
| 不同 If 时电压 - 正向 (Vf) | 1.3 V @ 1.2 A |
| 速度 | 标准恢复 >500ns，> 200mA（Io） |
| 反向恢复时间 (trr) | 1.5 µs |
| 不同 Vr 时电流 - 反向泄漏 | 5 µA @ 1000 V |
| 不同 Vr、F 时电容 | 18pF @ 0V，1MHz |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | SOD-123H |
| 供应商器件封装 | SOD-123HE |
| 工作温度 - 结 | -55°C ~ 150°C |
| 基本产品编号 | S1M |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
