SD1614T5-B1
SD1614T5-B1
- Available: 480
- Manufacturer: TDK Corporation
- Part Number: SD1614T5-B1

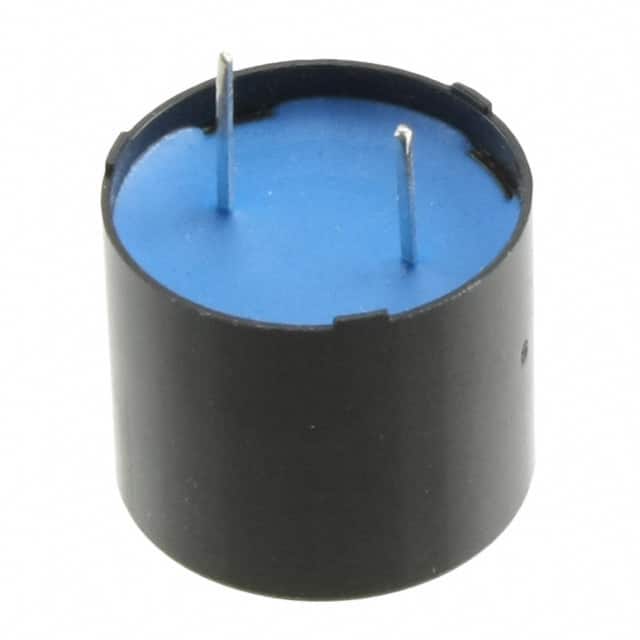

- Detailed Description: BUZZER MAGNETIC 5V 16MM TH
- Category: 音频产品 | 警报器、蜂鸣器和警笛
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.5120
10+
$1.4213
100+
$1.3457
1000+
$1.2701
10000+
$1.1945
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | SD |
| 包装 | 托盘 |
| 标准包装 | 480 |
| 产品状态 | 在售 |
| 驱动电路 | 传感器，外部驱动 |
| 输入类型 | 零-峰信号 |
| 电压 - 额定 | 5 V |
| 电压范围 | 3 ~ 6V |
| 频率 | 2.048kHz |
| 技术 | 磁性 |
| 工作模式 | 单音调 |
| 持续时间 | - |
| 声压级 (SPL) | 85dB @ 5V，10cm |
| 电流 - 供电 | 80mA |
| 端口位置 | 顶部 |
| 工作温度 | -40°C ~ 85°C |
| 认证机构 | - |
| 等级 | - |
| 安装类型 | 通孔 |
| 端接 | PC 引脚 |
| 大小 / 尺寸 | 0.630" 直径（16.00mm） |
| 高度 - 安装（最大值） | 0.551"（14.00mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8531.80.9041 |
