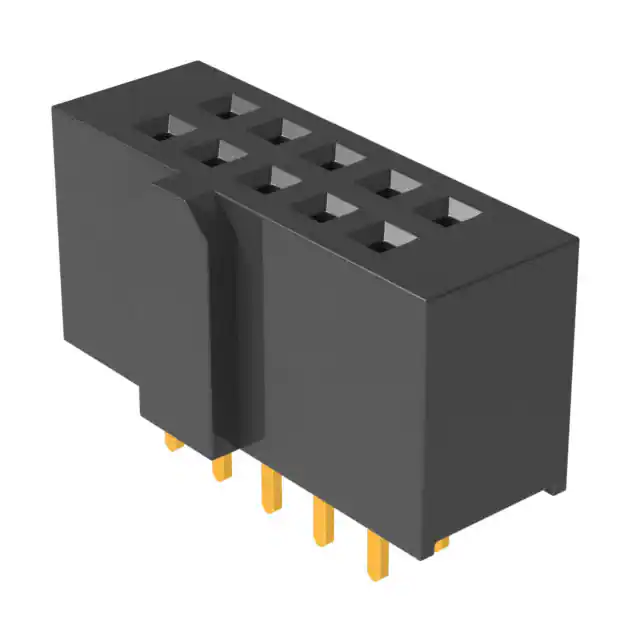

SFH11-PBPC-D05-ST-BK
SFH11-PBPC-D05-ST-BK
- In Stock: 0
- Manufacturer: Sullins Connector Solutions
- Part Number: SFH11-PBPC-D05-ST-BK
- Detailed Description: CONN HDR 10POS 0.1 GOLD PCB
- Category: 连接器，互连器件 | 矩形连接器 - 针座，插座，母插口
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.7920
10+
$0.7445
100+
$0.7049
1000+
$0.6653
10000+
$0.6257
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Sullins Connector Solutions |
|---|---|
| 系列 | SFH11 |
| 包装 | - |
| 标准包装 | 1 |
| 产品状态 | 在售 |
| 连接器类型 | 接头 |
| 触头类型 | 母形插口 |
| 样式 | 板至板 |
| 针位数 | 10 |
| 加载的针位数 | 所有 |
| 间距 - 配接 | 0.100"（2.54mm） |
| 排数 | 2 |
| 排距 - 配接 | 0.100"（2.54mm） |
| 安装类型 | 通孔 |
| 端接 | 焊接 |
| 紧固类型 | 推挽式 |
| 触头表面处理 - 配接 | 镀金 |
| 触头表面处理厚度 - 配接 | 闪存 |
| 绝缘颜色 | 黑色 |
| 绝缘高度 | 0.335"（8.51mm） |
| 接触长度 - 柱 | 0.126"（3.20mm） |
| 工作温度 | -40°C ~ 105°C |
| 材料可燃性等级 | UL94 V-0 |
| 触头表面处理 - 柱 | 镀金 |
| 接合堆叠高度 | - |
| 侵入防护 | - |
| 特性 | 电极标记 |
| 额定电流（安培） | 3A |
| 额定电压 | - |
| 应用 | - |
| 绝缘材料 | 聚对苯二甲酸丁二酯（PBT） |
| 触头形状 | 方形 |
| 触头材料 | 黄铜 |
| 触头表面处理厚度 - 柱 | 闪存 |
| 基本产品编号 | SFH11 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
