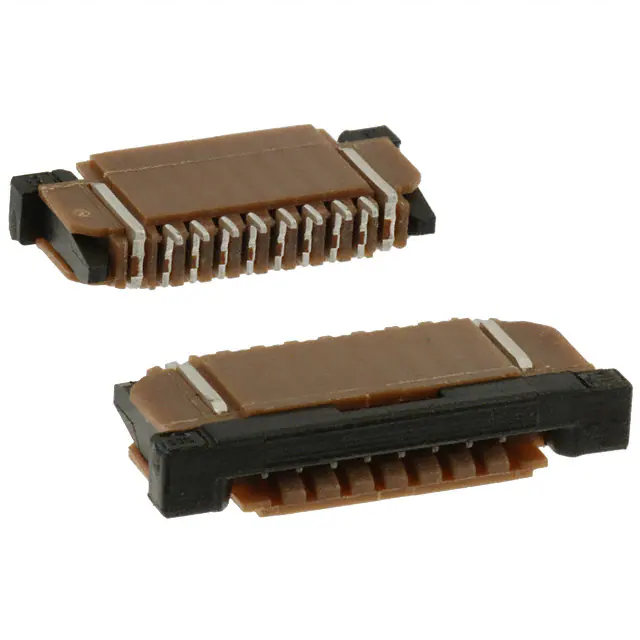

SFW8R-1STE1LF
SFW8R-1STE1LF
- Available: 4000
- Manufacturer: Amphenol ICC (FCI)
- Part Number: SFW8R-1STE1LF
- Detailed Description: CONN FFC BOTTOM 8POS 1.00MM R/A
- Category: 连接器，互连器件 | FFC、FPC（扁平柔性）连接器组件
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9360
10+
$0.8798
100+
$0.8330
1000+
$0.7862
10000+
$0.7394
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (FCI) |
|---|---|
| 系列 | SFW-R |
| 包装 | - |
| 标准包装 | 2000 |
| 产品状态 | 在售 |
| 扁平柔性类型 | FFC，FPC |
| 安装类型 | 表面贴装，直角 |
| 连接器/触头类型 | 触点，底部 |
| 针位数 | 8 |
| 间距 | 0.039"（1.00mm） |
| 端接 | 纽结引脚 |
| FFC、FCB 厚度 | 0.30mm |
| 板上高度 | 0.106"（2.70mm） |
| 锁定功能 | - |
| 电缆端类型 | 直式或锥形 |
| 触头材料 | 磷青铜 |
| 触头表面处理 | 锡 |
| 外壳材料 | 聚苯硫醚（PPS），玻璃纤维增强型 |
| 致动器材料 | 聚苯硫醚（PPS），玻璃纤维增强型 |
| 特性 | 零插入力（ZIF） |
| 额定电压 | 100V |
| 工作温度 | -55°C ~ 105°C |
| 材料可燃性等级 | UL94 V-0 |
| 额定电流（安培） | 1A |
| 触头表面处理厚度 | - |
| 外壳颜色 | 棕色 |
| 致动器颜色 | - |
| 配接次数 | 20 |
| 基本产品编号 | SFW8R |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
