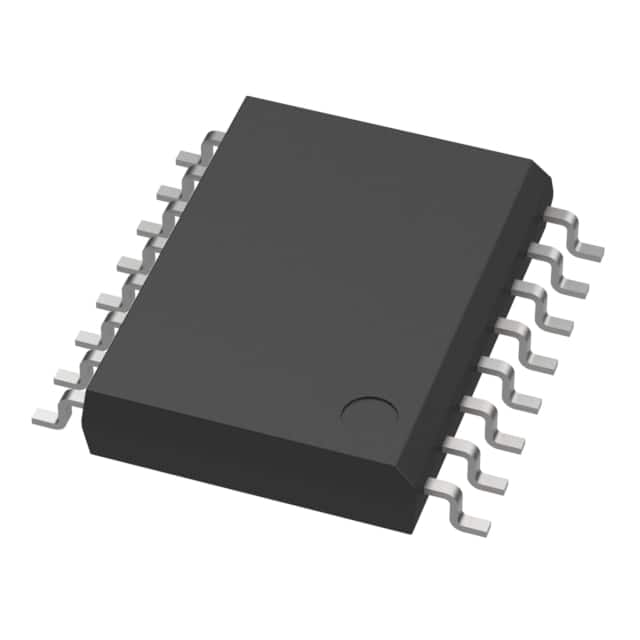

SI8230BD-B-IS
SI8230BD-B-IS
- In Stock: 0
- Manufacturer: Skyworks Solutions Inc.
- Part Number: SI8230BD-B-IS
- Detailed Description: DGTL ISO 5KV 2CH GATE DVR 16SOIC
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Skyworks Solutions Inc. |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | 管件 |
| 标准包装 | 46 |
| 产品状态 | 停产 |
| 技术 | 容性耦合 |
| 通道数 | 2 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 20kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 60ns，60ns |
| 脉宽失真（最大） | 5.6ns |
| 上升/下降时间（典型值） | 20ns，20ns（最大） |
| 电流 - 输出高、低 | 250mA，500mA |
| 电流 - 峰值输出 | 500mA |
| 电压 - 正向 (Vf)（典型值） | - |
| 电压 - 输出供电 | 9.4V ~ 24V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.295，7.50mm 宽） |
| 供应商器件封装 | 16-SOIC |
| 认证机构 | CQC，CSA，UR，VDE |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 2A（4 周） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
