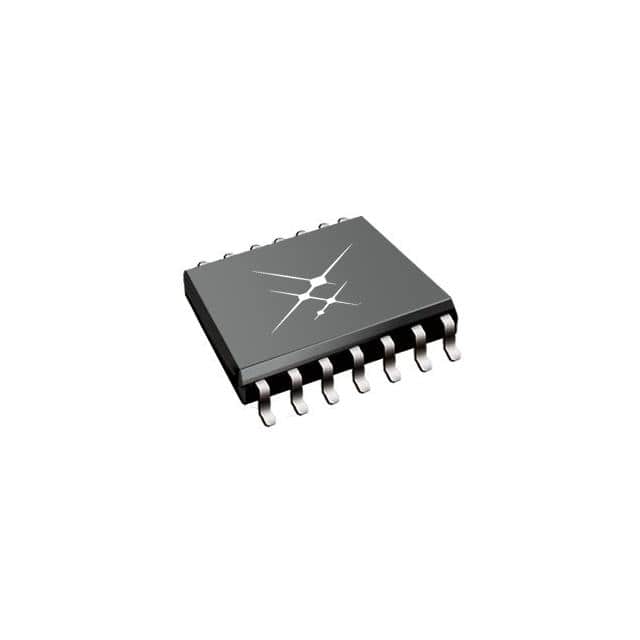

SI823H6AD-IS3
SI823H6AD-IS3
- Available: 46
- Manufacturer: Skyworks Solutions Inc.
- Part Number: SI823H6AD-IS3
- Detailed Description: 5KV GATE DRIVER 14-WBSOIC
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.6280
10+
$8.1103
100+
$7.6789
1000+
$7.2475
10000+
$6.8161
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Skyworks Solutions Inc. |
|---|---|
| 系列 | Si823Hx |
| 包装 | 管件 |
| 标准包装 | 46 |
| 产品状态 | 在售 |
| 技术 | 容性耦合 |
| 通道数 | 2 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 125kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 30ns，30ns |
| 脉宽失真（最大） | 5ns |
| 上升/下降时间（典型值） | 12ns，12ns（最大） |
| 电流 - 输出高、低 | 4A，4A |
| 电流 - 峰值输出 | 6A |
| 电压 - 正向 (Vf)（典型值） | - |
| 电压 - 输出供电 | 5.5V ~ 30V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 14-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 14-SOIC |
| 认证机构 | CQC，CSA，UL，VDE |
| 基本产品编号 | SI823 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
