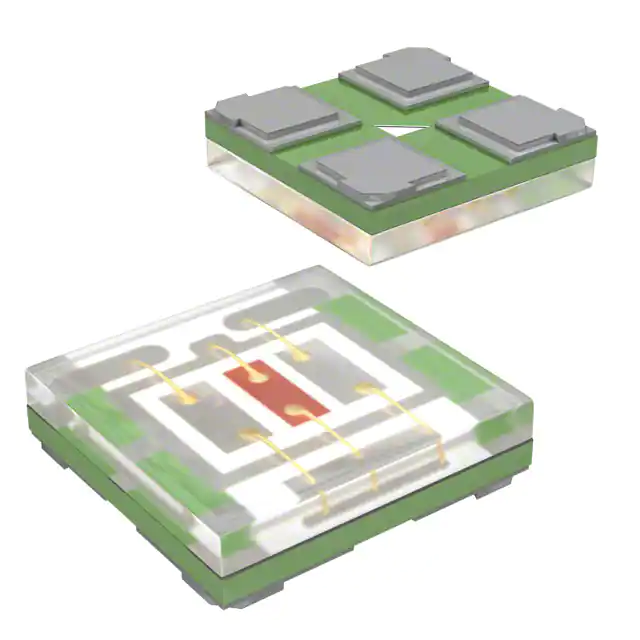

SML-LX0404SIUPGUSB
SML-LX0404SIUPGUSB
- Available: 150000
- Manufacturer: Lumex Opto/Components Inc.
- Part Number: SML-LX0404SIUPGUSB
- Detailed Description: LED RGB CLEAR SMD
- Category: 光电器件 | LED 指示 - 分立
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.5000
10+
$1.4100
100+
$1.3350
1000+
$1.2600
10000+
$1.1850
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Lumex Opto/Components Inc. |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 2000 |
| 产品状态 | 在售 |
| 颜色 | 红色，绿色，蓝色（RGB） |
| 配置 | 共阳极 |
| 透镜颜色 | 无色 |
| 透镜透明度 | 透明 |
| 毫烛光等级 | 30mcd 红色，40mcd 绿色，20mcd 蓝色 |
| 透镜样式 | 方形，带平顶 |
| 透镜尺寸 | 1.00mm |
| 电压 - 正向 (Vf)（典型值） | 1.95V 红色，2.85V 绿色，2.73V 蓝色 |
| 电流 - 测试 | 2mA 红色，2mA 绿色，2mA 파란색 |
| 视角 | 120° |
| 安装类型 | 表面贴装型 |
| 波长 - 主 | - |
| 波长 - 峰值 | 632nm 红色，518nm 绿色，465nm 蓝色 |
| 特性 | - |
| 封装/外壳 | 0404（1010 公制） |
| 供应商器件封装 | SMD |
| 大小 / 尺寸 | 1.00mm 长 x 1.00mm 宽 |
| 高度（最大值） | 0.30mm |
| 基本产品编号 | SML-LX0404 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
