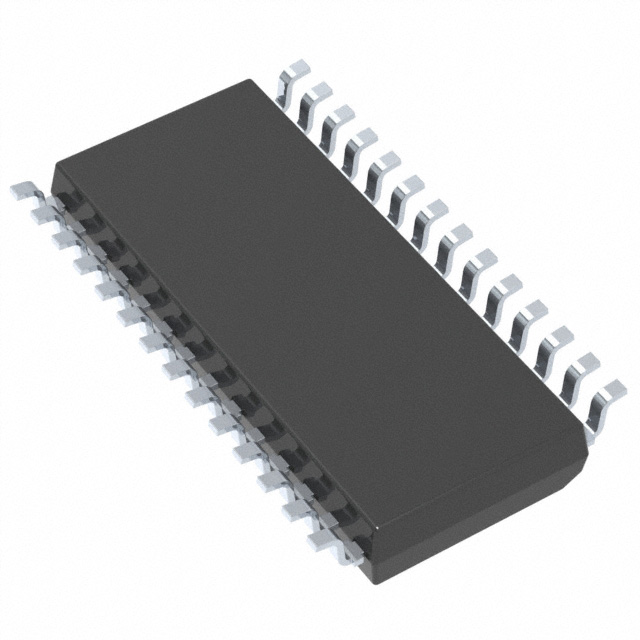

STDRIVE101TR
STDRIVE101TR
- In Stock: 8000
- Manufacturer: STMicroelectronics
- Part Number: STDRIVE101TR
- Detailed Description: 半桥（3） 驱动器 DC 电机，通用 功率 MOSFET，IGBT 28-SO
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.6339
10+
$1.5359
100+
$1.4542
1000+
$1.3725
10000+
$1.2908
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） |
| 标准包装 | 4000 |
| 产品状态 | 在售 |
| 输出配置 | 半桥（3） |
| 应用 | DC 电机，通用 |
| 接口 | 模拟，逻辑 |
| 负载类型 | 容性和阻性 |
| 技术 | 功率 MOSFET，IGBT |
| 导通电阻（典型值） | 35 欧姆 |
| 电流 - 输出/通道 | - |
| 电流 - 峰值输出 | 430mA |
| 电压 - 供电 | 9V ~ 20V |
| 电压 - 负载 | 580V |
| 工作温度 | -40°C ~ 125°C（TJ） |
| 特性 | 自举电路 |
| 故障保护 | 过流，超温，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 28-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 28-SO |
| 基本产品编号 | STDRIVE101 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | |
| HTSUS |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
