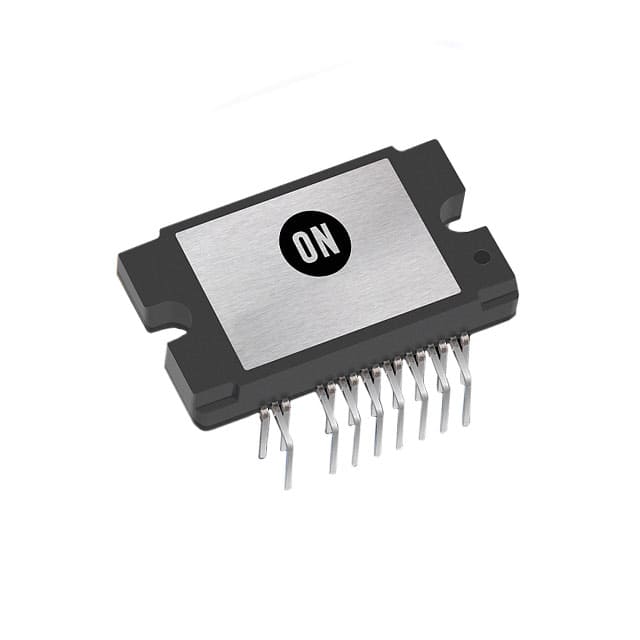

STK5Q4U362J-E
STK5Q4U362J-E
- In Stock: 16
- Manufacturer: onsemi
- Part Number: STK5Q4U362J-E
- Detailed Description: MOD IPM INVERTER 3PH DIPS3
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$13.8600
10+
$13.0284
100+
$12.3354
1000+
$11.6424
10000+
$10.9494
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 16 |
| 产品状态 | 停产 |
| 输出配置 | 半桥（3） |
| 应用 | AC 电机 |
| 接口 | 逻辑 |
| 负载类型 | 电感 |
| 技术 | IGBT |
| 导通电阻（典型值） | - |
| 电流 - 输出/通道 | 10A |
| 电流 - 峰值输出 | 20A |
| 电压 - 供电 | 12.5V ~ 17.5V |
| 电压 - 负载 | 400V（最大） |
| 工作温度 | 150°C（TJ） |
| 特性 | 状态标志 |
| 故障保护 | 限流，UVLO |
| 安装类型 | 通孔 |
| 封装/外壳 | 38-DIP 模块，24 引线 |
| 基本产品编号 | STK5 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
