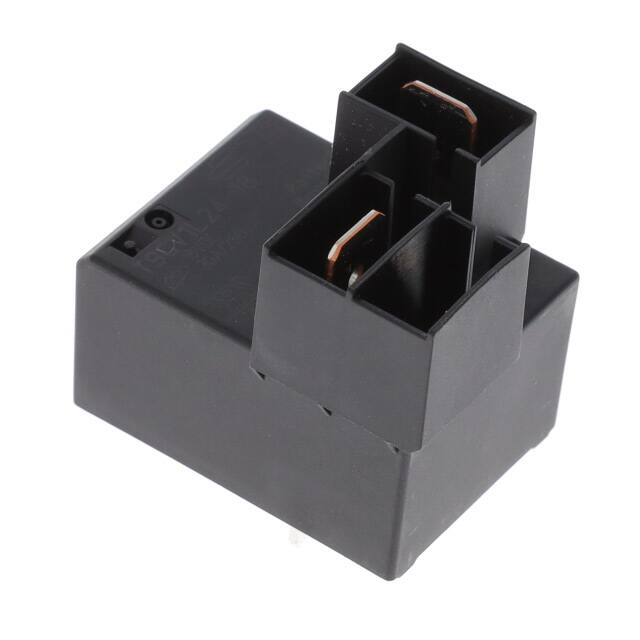

T9GV1L24-18
T9GV1L24-18
- In Stock: 0
- Manufacturer: TE Connectivity Potter & Brumfield Relays
- Part Number: T9GV1L24-18
- Detailed Description: RELAY GEN PURPOSE SPST 30A 18V
- Category: 继电器 | 功率继电器，高于 2 A
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.4240
10+
$5.0986
100+
$4.8274
1000+
$4.5562
10000+
$4.2850
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
|---|---|
| 系列 | T9G |
| 包装 | 散装 |
| 标准包装 | 10 |
| 产品状态 | 在售 |
| 安装类型 | 通孔 |
| 线圈电压 | 18VDC |
| 触头外形 | SPST-NO（1 Form A） |
| 额定接触（电流） | 30 A |
| 开关电压 | 480VAC - 最大 |
| 线圈电流 | 50 mA |
| 线圈类型 | 无锁存 |
| 特性 | - |
| 端接样式 | 插入式，QC - 0.250"（6.3mm） |
| 密封等级 | 密封式 - 焊剂防护 |
| 线圈绝缘 | B 类 |
| 必须吸合电压 | 13.5 VDC |
| 必须释放电压 | 1.8 VDC |
| 工作时间 | 15 ms |
| 释放时间 | 22 ms |
| 工作温度 | -40°C ~ 105°C |
| 触头材料 | 银锡氧化物（AgSnO） |
| 继电器类型 | 通用 |
| 线圈电阻 | 360 Ohms |
| 基本产品编号 | T9GV1 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.41.0050 |
