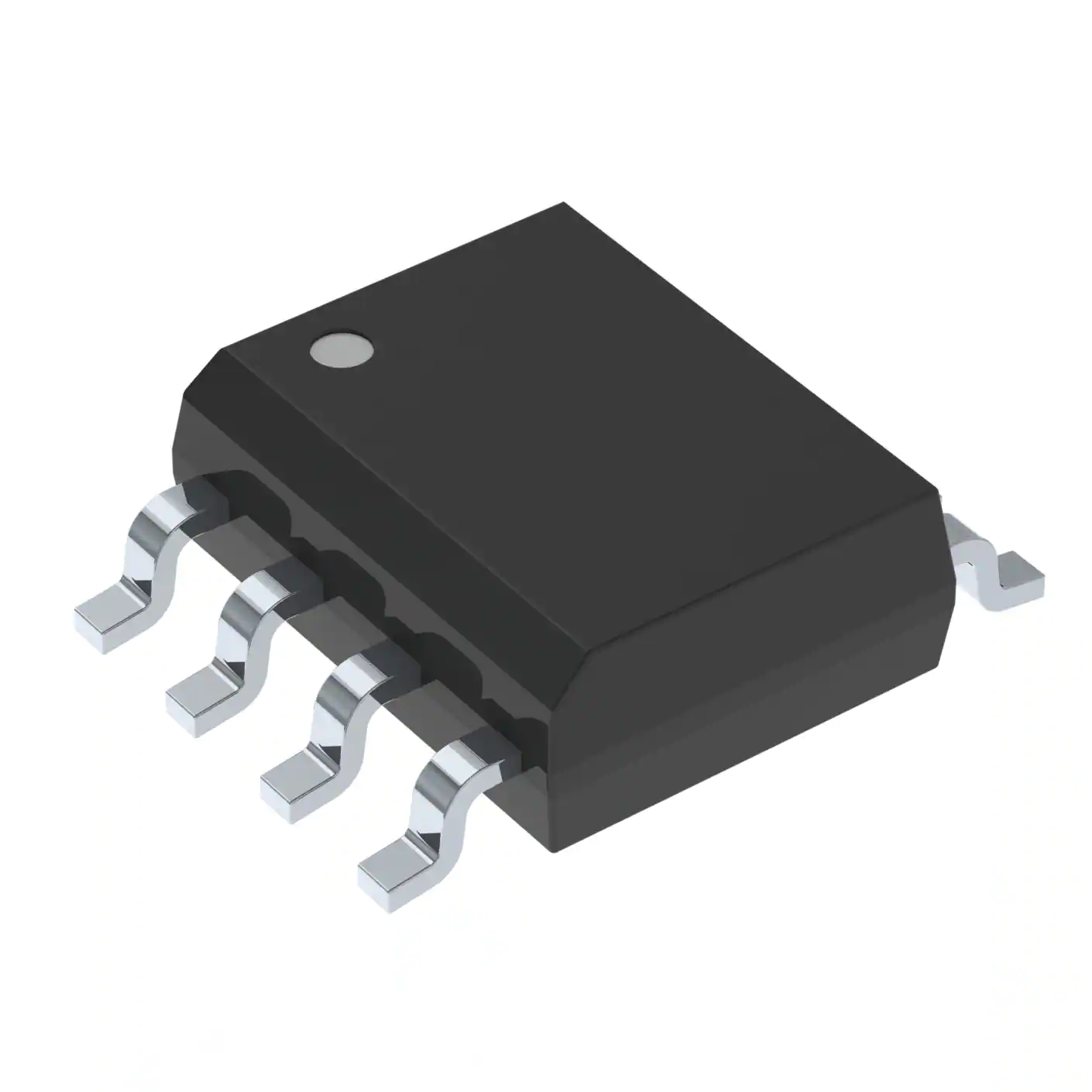

TLE5009-E2010

TLE5009-E2010

TLE5009-E2010

  • Available: 2500
  • Manufacturer: Infineon Technologies
  • Part Number: TLE5009-E2010
  • Detailed Description: 磁阻 传感器 角度 外磁铁,不含 鸥翼
  • Category: 传感器,变送器 | 位置传感器 - 位置传感器 - 角度、线性位置测量
  • RoHS Status: 符合 ROHS3 规范
  • Datasheet: Datasheet

Product Specifications

Manufacturer Infineon Technologies
系列 Automotive, AEC-Q100
包装 -
标准包装 2500
产品状态 在售
用于测量 角度
技术 磁阻
旋转角度 - 电气,机械 0° ~ 360°,连续
线性范围 -
输出 模拟电压
输出信号 Cosine,Sine
致动器类型 外磁铁,不含
线性度 -
电阻容差 -
电压 - 供电 4.5V ~ 5.5V
安装类型 表面贴装型
端接样式 鸥翼
工作温度 -40°C ~ 150°C
封装/外壳 8-SOIC(0.154,3.90mm 宽)
供应商器件封装 PG-DSO-8
基本产品编号 TLE5009

Environmental & Export

RoHS Status 符合 ROHS3 规范
Moisture Sensitivity Level (MSL) 3(168 小时)
REACH Status 非 REACH 产品
ECCN EAR99
HTSUS 8542.39.0001
