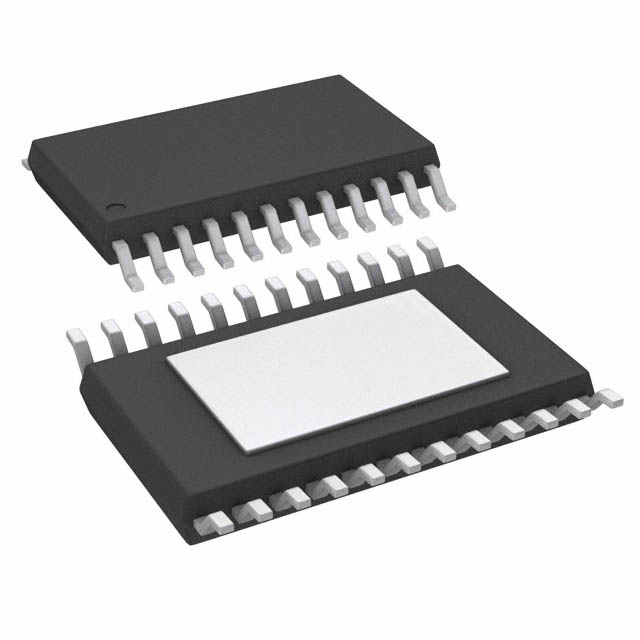

TLE94112ELXUMA1
TLE94112ELXUMA1
- Available: 1000
- Manufacturer: Infineon Technologies
- Part Number: TLE94112ELXUMA1
- Detailed Description: IC DRIVER HALF-BRIDGE 24SSOP
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.8447
10+
$3.6140
100+
$3.4218
1000+
$3.2295
10000+
$3.0373
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 2500 |
| 产品状态 | 不适用于新设计 |
| 输出配置 | 半桥（12） |
| 应用 | 交流电机，直流电机，通用 |
| 接口 | SPI |
| 负载类型 | 电感 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | 850 毫欧 LS，850 毫欧 HS |
| 电流 - 输出/通道 | 500mA |
| 电流 - 峰值输出 | 2A |
| 电压 - 供电 | 3V ~ 5.5V |
| 电压 - 负载 | 5.5V ~ 20V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | - |
| 故障保护 | 超温，短路，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 24-LSSOP（0.154"，3.90mm 宽）裸露焊盘 |
| 供应商器件封装 | PG-SSOP-24-4 |
| 基本产品编号 | TLE94112 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
