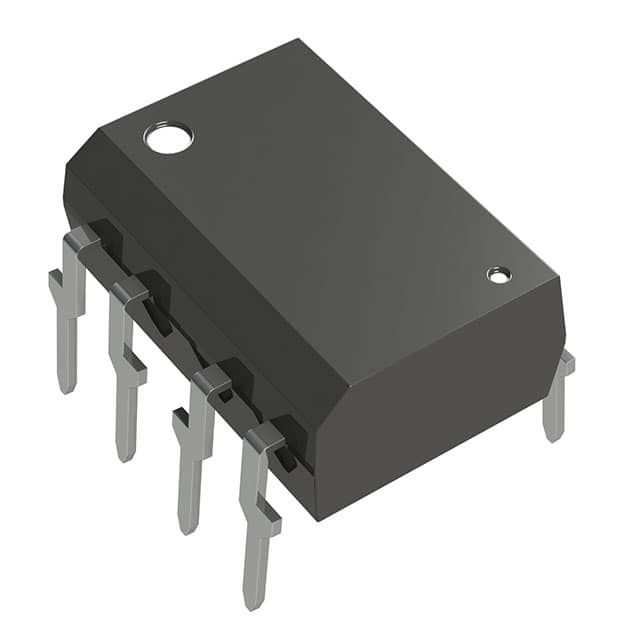

TLP2955(F)
.jpg)
TLP2955(F)
- In Stock: 0
- Manufacturer: Toshiba Semiconductor and Storage
- Part Number: TLP2955(F)
- Detailed Description: PHOTOCOUPLER DIP8 THROUGH-HOLE
- Category: 隔离器 | 光隔离器 - 逻辑输出光隔离器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.2080
10+
$2.0755
100+
$1.9651
1000+
$1.8547
10000+
$1.7443
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Toshiba Semiconductor and Storage |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 50 |
| 产品状态 | 最后售卖 |
| 通道数 | 1 |
| 输入 - 侧 1/侧 2 | 1/0 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 20kV/µs |
| 输入类型 | DC |
| 输出类型 | 推挽式/图腾柱 |
| 电流 - 输出/通道 | 25 mA |
| 数据速率 | - |
| 传播延迟 tpLH / tpHL（最大值） | 250ns，250ns |
| 上升/下降时间（典型值） | 16ns，14ns |
| 电压 - 正向 (Vf)（典型值） | 1.55V |
| 电流 - DC 正向 (If)（最大值） | 25mA |
| 电压 - 供电 | 3V ~ 20V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 8-DIP（0.300"，7.62mm） |
| 供应商器件封装 | 8-DIP |
| 基本产品编号 | TLP2955 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
