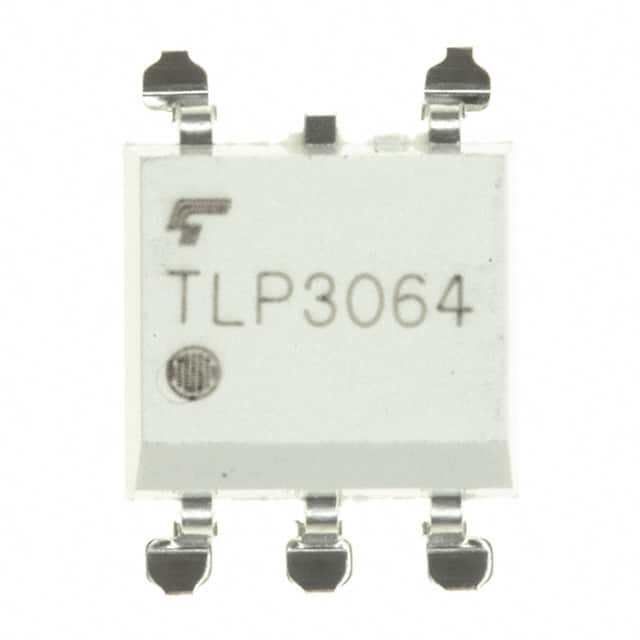

TLP3064(D4TP1S,C,F
TLP3064(D4TP1S,C,F
- In Stock: 0
- Manufacturer: Toshiba Semiconductor and Storage
- Part Number: TLP3064(D4TP1S,C,F
- Detailed Description: X36 PB-F PHOTOCOUPLER SMD, VDE,
- Category: 隔离器 | 光隔离器 - 双向可控硅 ，SCR 输出光隔离器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8838
10+
$0.8308
100+
$0.7866
1000+
$0.7424
10000+
$0.6982
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Toshiba Semiconductor and Storage |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） |
| 标准包装 | 1500 |
| 产品状态 | 在售 |
| 输出类型 | Triac |
| 过零电路 | 是 |
| 通道数 | 1 |
| 电压 - 隔离 | 5000Vrms |
| 电压 - 断态 | 600 V |
| 静态 dV/dt（最小值） | 200V/µs |
| 电流 - LED 触发 (Ift)（最大值） | 3mA |
| 电流 - 通态 (It (RMS))（最大值） | 100 mA |
| 电流 - 保持 (Ih) | 600µA（标准） |
| 接通时间 | - |
| 电压 - 正向 (Vf)（典型值） | 1.4V |
| 电流 - DC 正向 (If)（最大值） | 30 mA |
| 工作温度 | -40°C ~ 100°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 6-DIP（0.300"，7.62mm），5 引线 |
| 供应商器件封装 | 6-DIP（开口），5 引线 |
| 认证机构 | cUR，UR，VDE |
| 基本产品编号 | TLP3064 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
