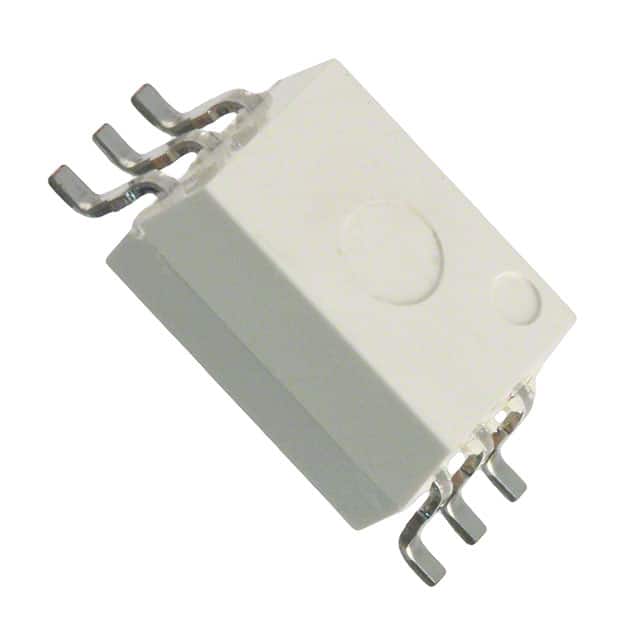

TLP701(TP,F)
.jpg)
TLP701(TP,F)
- Available: 1500
- Manufacturer: Toshiba Semiconductor and Storage
- Part Number: TLP701(TP,F)
- Detailed Description: OPTOISO 5KV GATE DRIVER 6SDIP GW
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.1360
10+
$2.0078
100+
$1.9010
1000+
$1.7942
10000+
$1.6874
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Toshiba Semiconductor and Storage |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 1500 |
| 产品状态 | 最后售卖 |
| 技术 | 光学耦合 |
| 通道数 | 1 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 10kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 700ns，700ns |
| 脉宽失真（最大） | - |
| 上升/下降时间（典型值） | 50ns，50ns |
| 电流 - 输出高、低 | 400mA，400mA |
| 电流 - 峰值输出 | 600mA |
| 电压 - 正向 (Vf)（典型值） | 1.55V |
| 电流 - DC 正向 (If)（最大值） | 20 mA |
| 电压 - 输出供电 | 10V ~ 30V |
| 工作温度 | -40°C ~ 100°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 6-SOIC（0.268，6.80mm 宽） |
| 供应商器件封装 | 6-SDIP 鸥翼 |
| 认证机构 | cUL，UL |
| 基本产品编号 | TLP701 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | 5A991G |
| HTSUS | 8541.49.8000 |
