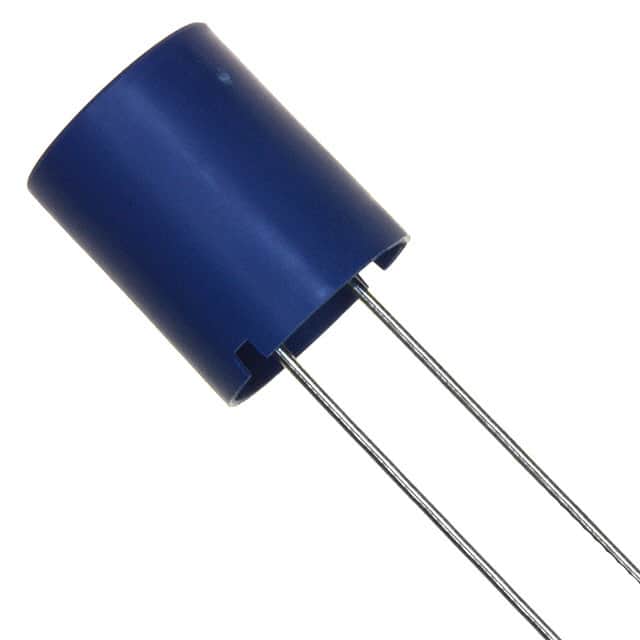

TSL1315RA-152JR68-PF
TSL1315RA-152JR68-PF
- In Stock: 0
- Manufacturer: TDK Corporation
- Part Number: TSL1315RA-152JR68-PF
- Detailed Description: FIXED IND 1.5MH 680MA 1.3 OHM TH
- Category: 电感器，线圈，扼流圈 | 固定电感器
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | TSL |
| 包装 | 剪切带（CT） | 带盒（TB） |
| 标准包装 | 200 |
| 产品状态 | 停产 |
| 类型 | - |
| 材料 - 磁芯 | - |
| 电感 | 1.5 mH |
| 容差 | ±5% |
| 额定电流（安培） | 680 mA |
| 电流 - 饱和 （Isat） | 1A |
| 屏蔽 | 无屏蔽 |
| DC 电阻 (DCR) | 1.3 欧姆最大 |
| 不同频率时 Q 值 | 40 @ 252kHz |
| 频率 - 自谐振 | 830kHz |
| 等级 | - |
| 工作温度 | -20°C ~ 85°C |
| 电感频率 - 测试 | 1 kHz |
| 安装类型 | 通孔 |
| 封装/外壳 | 径向，垂直圆柱 |
| 供应商器件封装 | - |
| 大小 / 尺寸 | 0.551 直径（14.00mm） |
| 高度 - 安装（最大值） | 0.669（17.00mm） |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
