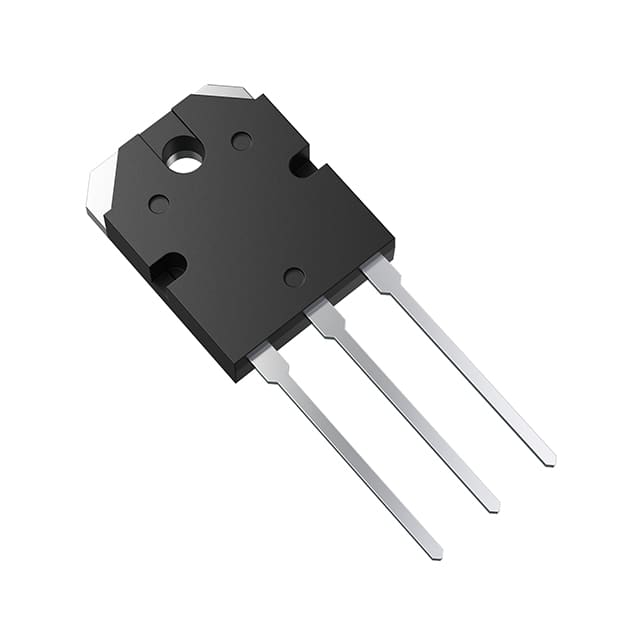

TW070J120B,S1Q
TW070J120B,S1Q
- In Stock: 0
- Manufacturer: Toshiba Semiconductor and Storage
- Part Number: TW070J120B,S1Q
- Detailed Description: SICFET N-CH 1200V 36A TO3P
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - 单 FET，MOSFET
- RoHS Status：
Reference Price (USD)
1+
$42.6120
10+
$40.0553
100+
$37.9247
1000+
$35.7941
10000+
$33.6635
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Toshiba Semiconductor and Storage |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 25 |
| 产品状态 | 在售 |
| FET 类型 | N 通道 |
| 技术 | SiCFET（碳化硅） |
| 漏源电压（Vdss） | 1200 V |
| 25°C 时电流 - 连续漏极 (Id) | 36A（Tc） |
| 驱动电压（最大 Rds On，最小 Rds On） | 20V |
| 不同 Id、Vgs 时导通电阻（最大值） | 90 毫欧 @ 18A，20V |
| 不同 Id 时 Vgs(th)（最大值） | 5.8V @ 20mA |
| 不同 Vgs 时栅极电荷 (Qg)（最大值） | 67 nC @ 20 V |
| Vgs（最大值） | ±25V，-10V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | 1680 pF @ 800 V |
| FET 功能 | 标准 |
| 功率耗散（最大值） | 272W（Tc） |
| 工作温度 | -55°C ~ 175°C |
| 安装类型 | 通孔 |
| 供应商器件封装 | TO-3P（N） |
| 封装/外壳 | TO-3P-3，SC-65-3 |
| 基本产品编号 | TW070J120 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
