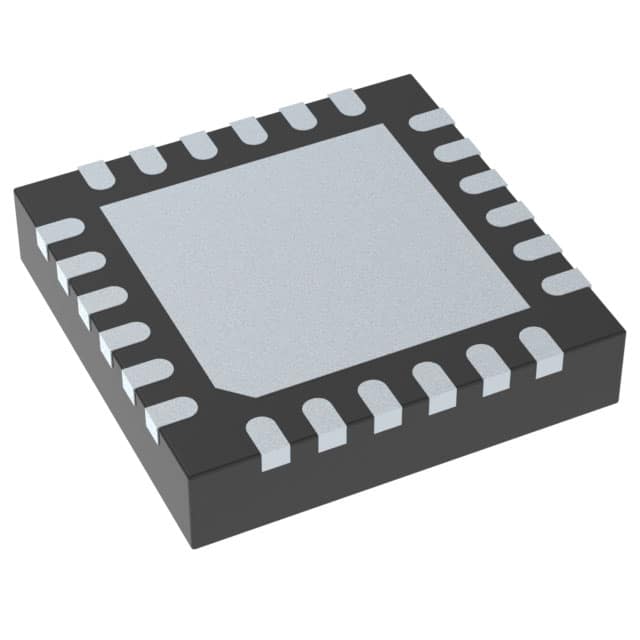

UCC28781QRTWRQ1
UCC28781QRTWRQ1
- In Stock: 0
- Manufacturer: Texas Instruments
- Part Number: UCC28781QRTWRQ1
- Detailed Description: 离线转换器 反激，次级侧 SR 拓扑 500kHz 24-WQFN（4x4）
- Category: 集成电路（IC） | 电源管理（PMIC） - AC DC 转换器，离线开关
- RoHS Status： 不适用
Reference Price (USD)
1+
$3.6840
10+
$3.4630
100+
$3.2788
1000+
$3.0946
10000+
$2.9104
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 输出隔离 | 隔离 |
| 内部开关 | 无 |
| 电压 - 击穿 | - |
| 拓扑 | 反激，次级侧 SR |
| 电压 - 启动 | 500 mV |
| 电压 - 供电 (Vcc/Vdd) | 14V ~ 34V |
| 占空比 | - |
| 频率 - 开关 | 500kHz |
| 故障保护 | 限流，超功率，超温，过压，短路 |
| 控制特性 | 软启动 |
| 工作温度 | -40°C ~ 125°C（TJ） |
| 封装/外壳 | 24-WFQFN 裸露焊盘 |
| 供应商器件封装 | 24-WQFN（4x4） |
| 安装类型 | 表面贴装型 |
Environmental & Export
| RoHS Status | 不适用 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
