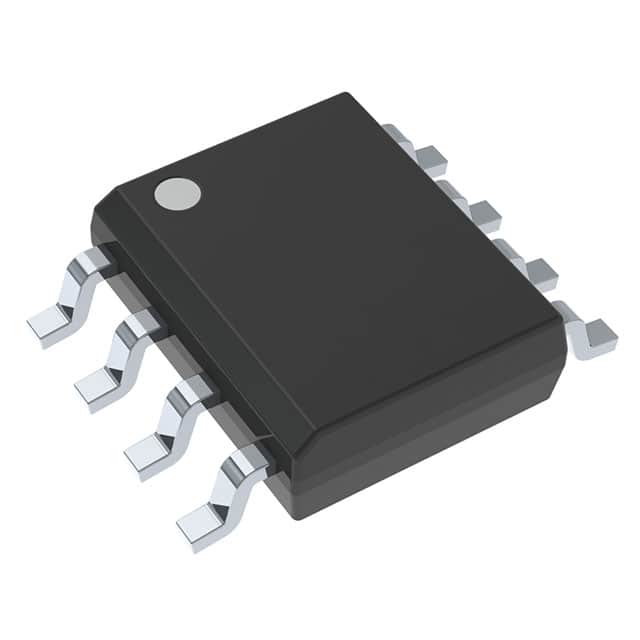

UCC5320ECD
UCC5320ECD
- Available: 75
- Manufacturer: Texas Instruments
- Part Number: UCC5320ECD
- Detailed Description: DGTL ISO 3KV 1CH GATE DRVR 8SOIC
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.3720
10+
$3.1697
100+
$3.0011
1000+
$2.8325
10000+
$2.6639
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 75 |
| 产品状态 | 在售 |
| 技术 | 容性耦合 |
| 通道数 | 1 |
| 电压 - 隔离 | 3000Vrms |
| 共模瞬变抗扰度（最小值） | 100kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 72ns，75ns |
| 脉宽失真（最大） | 20ns |
| 上升/下降时间（典型值） | 12ns，10ns |
| 电流 - 输出高、低 | 2.4A，2.2A |
| 电流 - 峰值输出 | 4.3A |
| 电压 - 正向 (Vf)（典型值） | - |
| 电压 - 输出供电 | 13.2V ~ 33V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商器件封装 | 8-SOIC |
| 认证机构 | CQC，CSA，UR，VDE |
| 基本产品编号 | UCC5320 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
