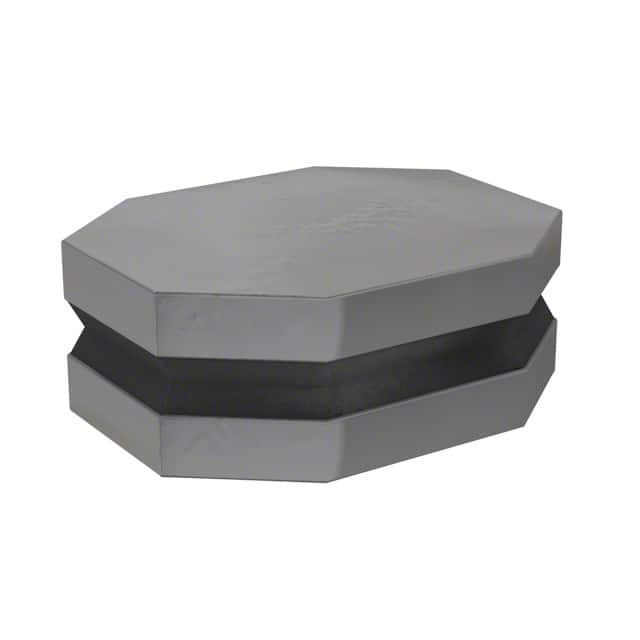

VLS252010ET-4R7M
VLS252010ET-4R7M
- Available: 2000
- Manufacturer: TDK Corporation
- Part Number: VLS252010ET-4R7M
- Detailed Description: 4.7 µH 屏蔽 Drum Core，Wirewound 电感器 800 mA 398 毫欧最大 1008（2520 公制）
- Category: 电感器，线圈，扼流圈 | 固定电感器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5760
10+
$0.5414
100+
$0.5126
1000+
$0.4838
10000+
$0.4550
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | VLS |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 2000 |
| 产品状态 | 不适用于新设计 |
| 类型 | Drum Core，Wirewound |
| 材料 - 磁芯 | 铁氧体 |
| 电感 | 4.7 µH |
| 容差 | ±20% |
| 额定电流（安培） | 800 mA |
| 电流 - 饱和 （Isat） | 800mA |
| 屏蔽 | 屏蔽 |
| DC 电阻 (DCR) | 398 毫欧最大 |
| 不同频率时 Q 值 | - |
| 频率 - 自谐振 | - |
| 等级 | - |
| 工作温度 | -40°C ~ 105°C |
| 电感频率 - 测试 | 1 MHz |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 1008（2520 公制） |
| 供应商器件封装 | 1008（2520 公制） |
| 大小 / 尺寸 | 0.098 长 x 0.079 宽（2.50mm x 2.00mm） |
| 高度 - 安装（最大值） | 0.039（1.00mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
