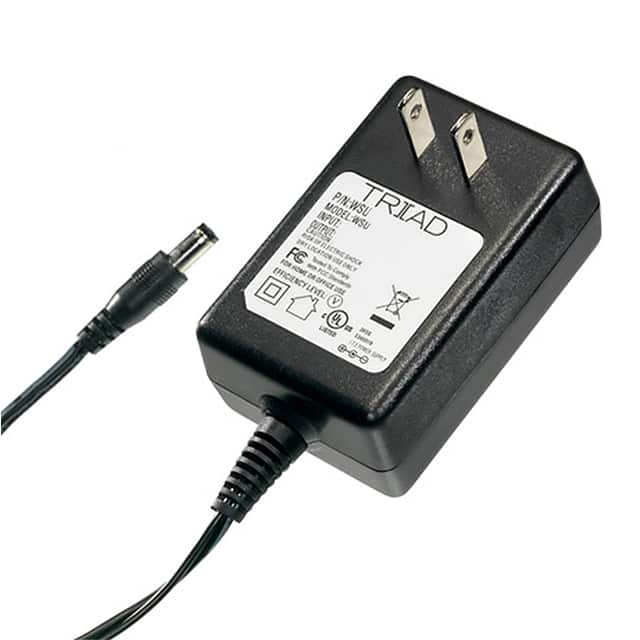

WSU120-1500
WSU120-1500
- In Stock: 0
- Manufacturer: Triad Magnetics
- Part Number: WSU120-1500
- Detailed Description: 12V 18 W AC/DC 外部 壁装（II 类） 适配器 固定插片 输入
- Category: 电源 - 外部/内部（板外） | AC DC 台式、桌面式、壁装式适配器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$14.9880
10+
$14.0887
100+
$13.3393
1000+
$12.5899
10000+
$11.8405
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Triad Magnetics |
|---|---|
| 系列 | WSU |
| 包装 | 盒 |
| 标准包装 | 1 |
| 产品状态 | 在售 |
| 使用地区 | 适用于北美地区 |
| 外形 | 壁装（II 类） |
| 输入类型 | 固定插片 |
| 电压 - 输入 | 90 ~ 264 VAC |
| 电压 - 输出 | 12V |
| 电流 - 输出（最大值） | 1.5A |
| 功率 (W) | 18 W |
| 空载功耗 | 100mW（最大） |
| 极化 | 正极中心 |
| 应用 | ITE（商业） |
| 效率 | VI 级 |
| 工作温度 | 0°C ~ 40°C |
| 输出连接器 | 圆管插头，2.1mm 内径 x 5.5mm 外径 x 11.0mm |
| 电线长度 | 72"（1.83m） |
| 输入连接器 | NEMA 1-15P |
| 大小 / 尺寸 | 3.03" 长 x 1.89" 宽 x 1.22" 高（77.0mm x 48.0mm x 31.0mm） |
| 认证机构 | cETLus |
| 重量 | - |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.40.9510 |
