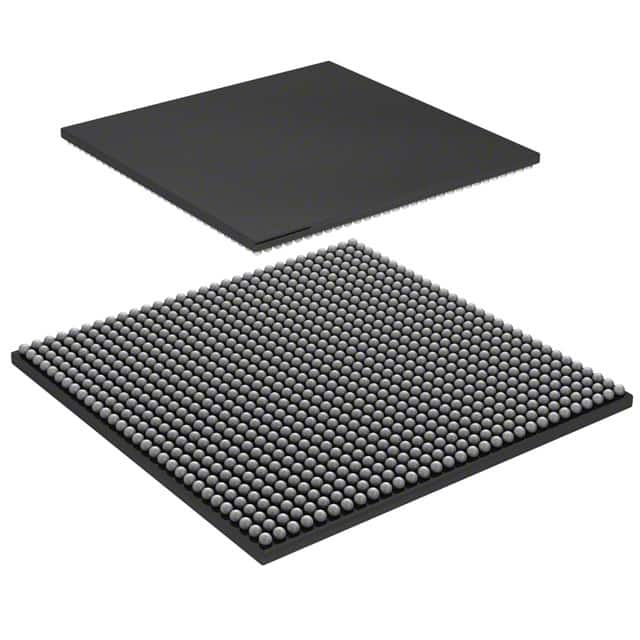

XCZU9EG-2FFVC900E
XCZU9EG-2FFVC900E
- In Stock: 0
- Manufacturer: AMD Xilinx
- Part Number: XCZU9EG-2FFVC900E
- Detailed Description: IC SOC CORTEX-A53 900FCBGA
- Category: 集成电路（IC） | 嵌入式 - 片上系统（SoC）
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5220.6120
10+
$4907.3753
100+
$4646.3447
1000+
$4385.3141
10000+
$4124.2835
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | AMD Xilinx |
|---|---|
| 系列 | Zynq® UltraScale+™ MPSoC EG |
| 包装 | 托盘 |
| 标准包装 | 1 |
| 产品状态 | 在售 |
| 架构 | MCU，FPGA |
| 核心处理器 | 带 CoreSight™ 的四核 ARM® Cortex®-A53 MPCore™，带 CoreSight™ 的双核 ARM®Cortex™-R5，ARM Mali™-400 MP2 |
| 闪存大小 | - |
| RAM 大小 | 256KB |
| 外设 | DMA，WDT |
| 连接能力 | CANbus，EBI/EMI，以太网，I²C，MMC/SD/SDIO，SPI，UART/USART，USB OTG |
| 速度 | 533MHz，600MHz，1.3GHz |
| 主要属性 | Zynq®UltraScale+™ FPGA，599K+ 逻辑单元 |
| 工作温度 | 0°C ~ 100°C（TJ） |
| 封装/外壳 | 900-BBGA，FCBGA |
| 供应商器件封装 | 900-FCBGA（31x31） |
| I/O 数 | 204 |
| 基本产品编号 | XCZU9 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 4（72 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | 5A002A4 XIL |
| HTSUS | 8542.31.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
